The GraphQL API of the model

Every Keplin app serves a GraphQL API at an endpoint of its own. That API's schema is not written by hand: it is generated from two sources — the APIs you build in the builder and the app's data model. The model's tables become GraphQL types with their fields and relations; the model's enums become GraphQL enums; and a Table API turns a table into complete read and write operations, with filters, sorting and pagination, without you writing a line of SQL.

This page covers the endpoint, the Table APIs and the query language they offer to clients.

#The app's endpoint

Every operation of an app is served at a single GraphQL endpoint:

POST /api/graphql/<endereco-da-app>

In the example app, POST /api/graphql/gestao-clientes. The request is a JSON with query and variables, as in any GraphQL service — the Docs tab of each API gives you ready-to-copy examples. When the app is published at an address of its own, the same service also answers at /api/graphql of that address.

Who can call the endpoint:

Who calls	How it authenticates	What it sees
The app's screens	The app user's session (automatic)	Published APIs
External systems	x-api-key header — see API keys	Published APIs within the key's scope
Whoever builds	Platform session	Published APIs AND drafts (marked as draft)
Anonymous callers	Nothing	Only public APIs

#Creating a Table API

1. Create an API (New API) with the name that will serve as the base of the operations — for example contas.

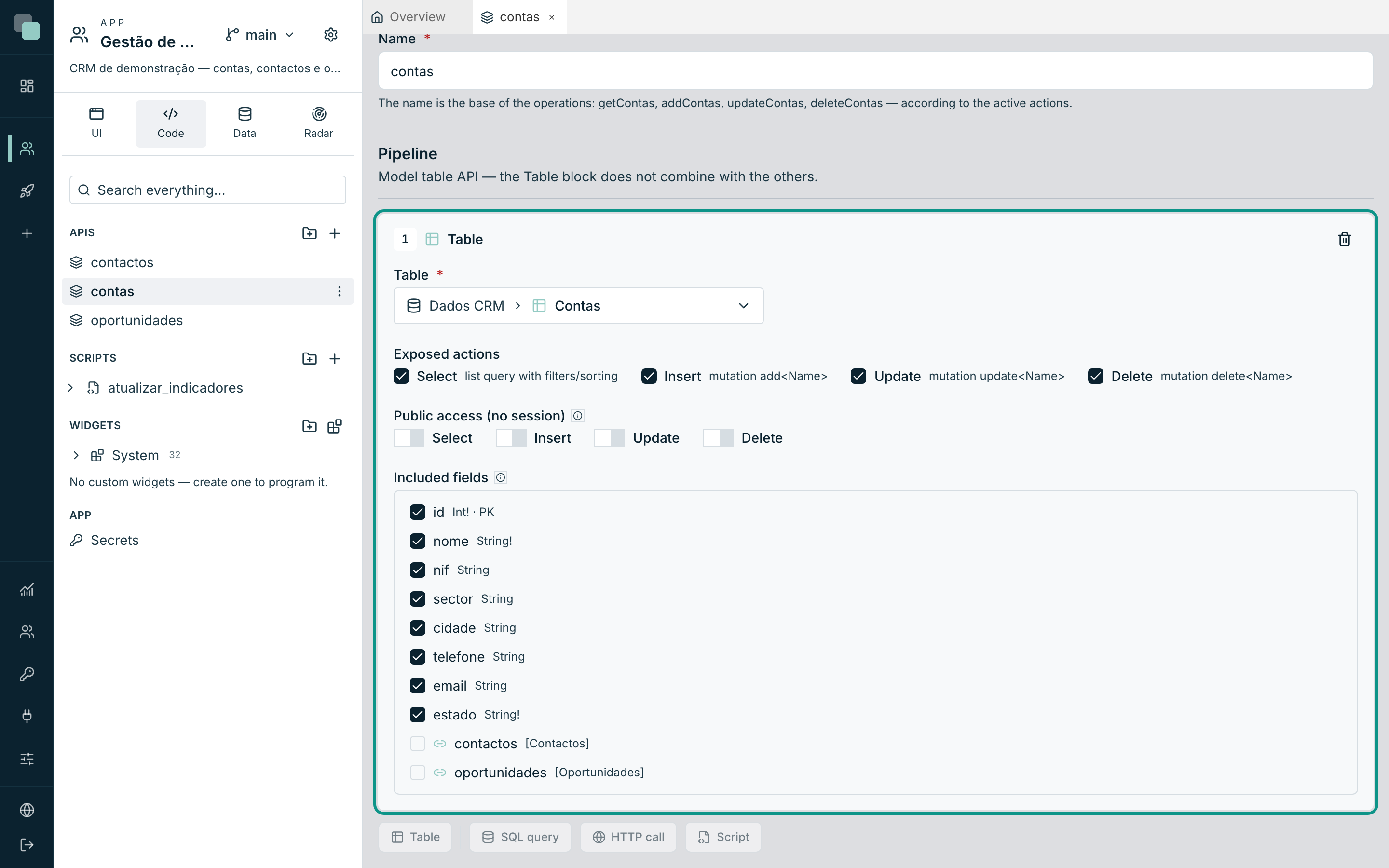

2. On the Build tab, Pipeline section, click the Table button. The Table block takes up the whole pipeline — it does not combine with SQL, HTTP or Script steps.

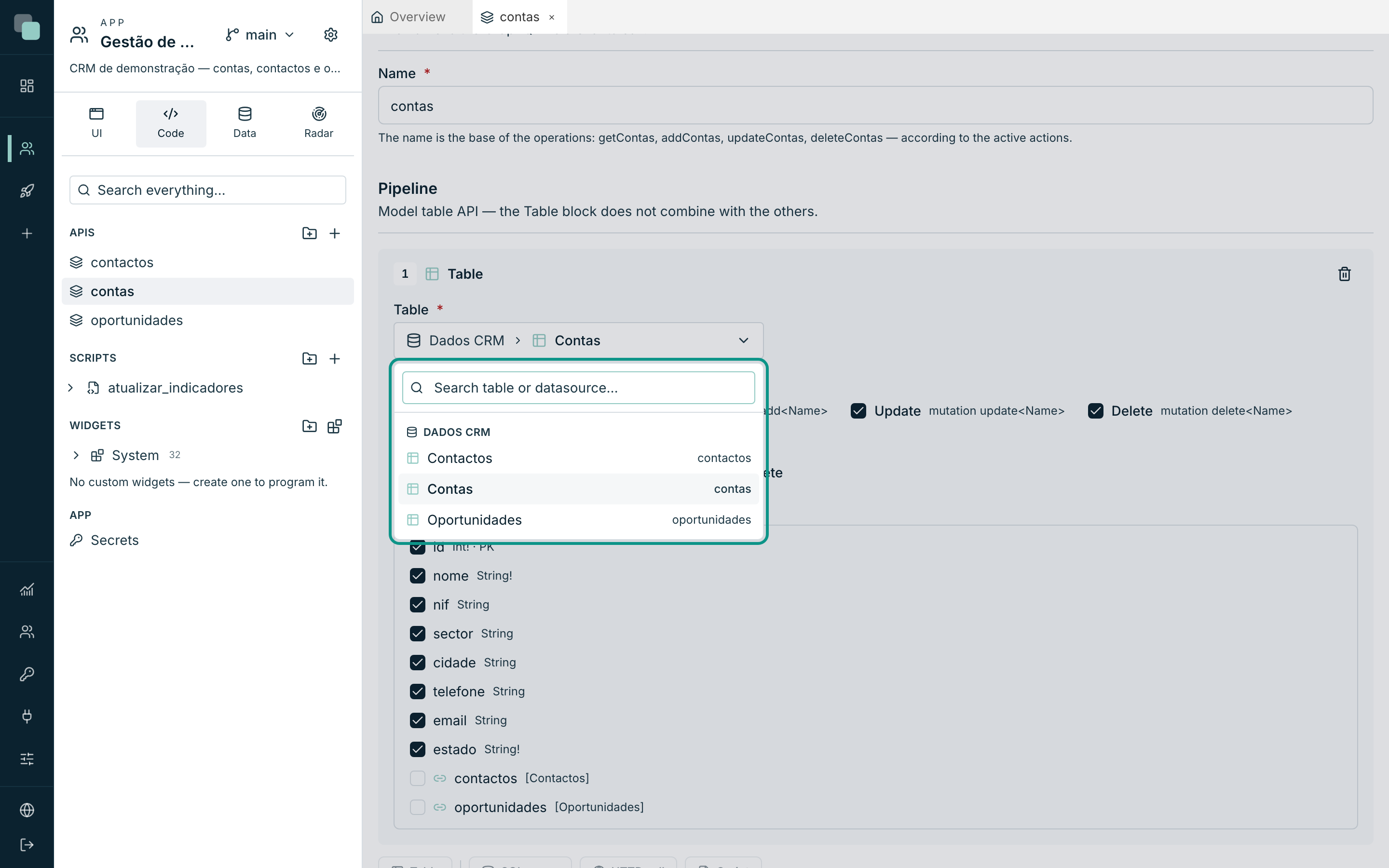

3. Choose the table in the Choose the table… selector — the tables appear grouped by datasource, with search by table or datasource name.
4. Enable the Exposed actions and adjust the Included fields (see below).
5. Save. To publish, it needs a chosen table and at least one active action.

#Exposed actions

Each active action generates an operation in the schema, with the name derived from the base — for the contas API:

Action	Generated operation	What it does
Select	getContas (query)	List with filters/sorting/pagination. Brings countContas, the total, along with it.
Insert	addContas (mutation)	Creates a row.
Update	updateContas (mutation)	Updates a row by primary key — partial: it only changes what you send.
Delete	deleteContas (mutation)	Deletes a row by primary key and returns true.

The Public access (no session) row controls, action by action, what public screens can call — details in Public APIs.

#Included fields

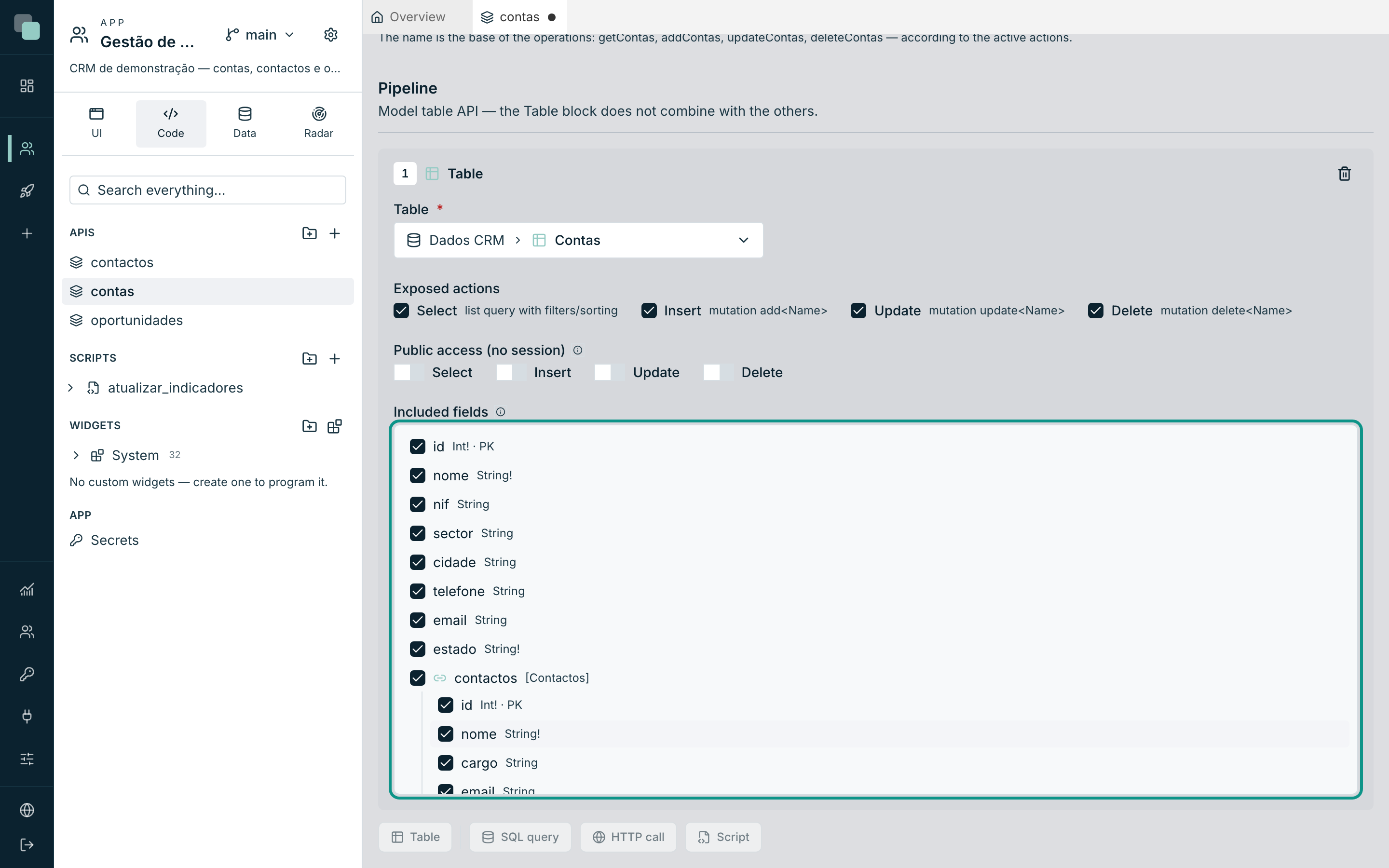

The Included fields tree defines the shape of the response: untick the fields you do not want to expose, and expand the navigation fields to include related entities — recursively, as in a visual GraphQL editor. On a contas API, expanding the contactos navigator lets clients ask for each account's contacts in the same call.

#Reading data: filters, sorting, pagination

The list query accepts four arguments: where, order, take and skip. A complete example in the Customer Management app:

query {
  getContas(
    where: { cidade: { eq: "Lisboa" }, estado: { neq: "ARQUIVADA" } }
    order: [{ nome: ASC }]
    take: 20
    skip: 0
  ) {
    id
    nome
    cidade
    contactos {
      nome
      email
    }
  }
}

#The where argument

Each filterable field accepts operators according to its type:

Field type	Operators
Text (and enums)	eq, neq, contains, startsWith, endsWith, gt, gte, lt, lte, in, nin
Numbers (Int, Float)	eq, neq, gt, gte, lt, lte, in, nin
Boolean	eq, neq
ID	eq, neq, in, nin

And two combinators for compound conditions: and and or, which take lists of filters.

where: {
  or: [
    { cidade: { eq: "Lisboa" } }
    { cidade: { eq: "Porto" } }
  ]
  valorAnual: { gte: 10000 }
}

Useful rules:

• eq: null finds the records with the field empty; neq: null, the filled-in ones.
• Date ranges: dates stored as ISO text (e.g. 2026-08-11) sort alphabetically the way they sort in time, so gt/lt/gte/lte on text is enough to filter ranges — dataCriacao: { gte: "2026-01-01", lt: "2026-07-01" }.
• in takes a list of values; nin excludes it.
• Filter values always go parameterized to the database — a contains with malicious text is not a risk.

#Sorting and paginating

• order is a list of { campo: ASC } or { campo: DESC } — several items sort by several fields, in the order given.
• take limits the number of rows (ceiling of 10,000 per request) and skip skips the first N — together they make classic pagination.

#The total: count

Each Table API with Select active also gains count<Nome>, which returns the total number of rows for the SAME where. The natural pair of a paginated table is asking for the page and the total in one operation, with aliases:

query {
  items: getContas(take: 10, skip: 0) { id nome }
  total: countContas
}

With a filter, pass the same where to both fields — the total counts exactly the rows the list would return without pagination.

#Writing data

• addContas receives the included fields as arguments (the table's required ones are required on the mutation). On some databases the response is the created row; on others, true — the API's Docs tab shows the exact shape in your case.
• updateContas receives the primary key (required) and the remaining fields as optional — it only updates what you send — and returns the updated row.
• deleteContas receives the primary key and returns true.

mutation ($nome: String!, $cidade: String) {
  addContas(nome: $nome, cidade: $cidade) {
    id
    nome
  }
}

#Enums

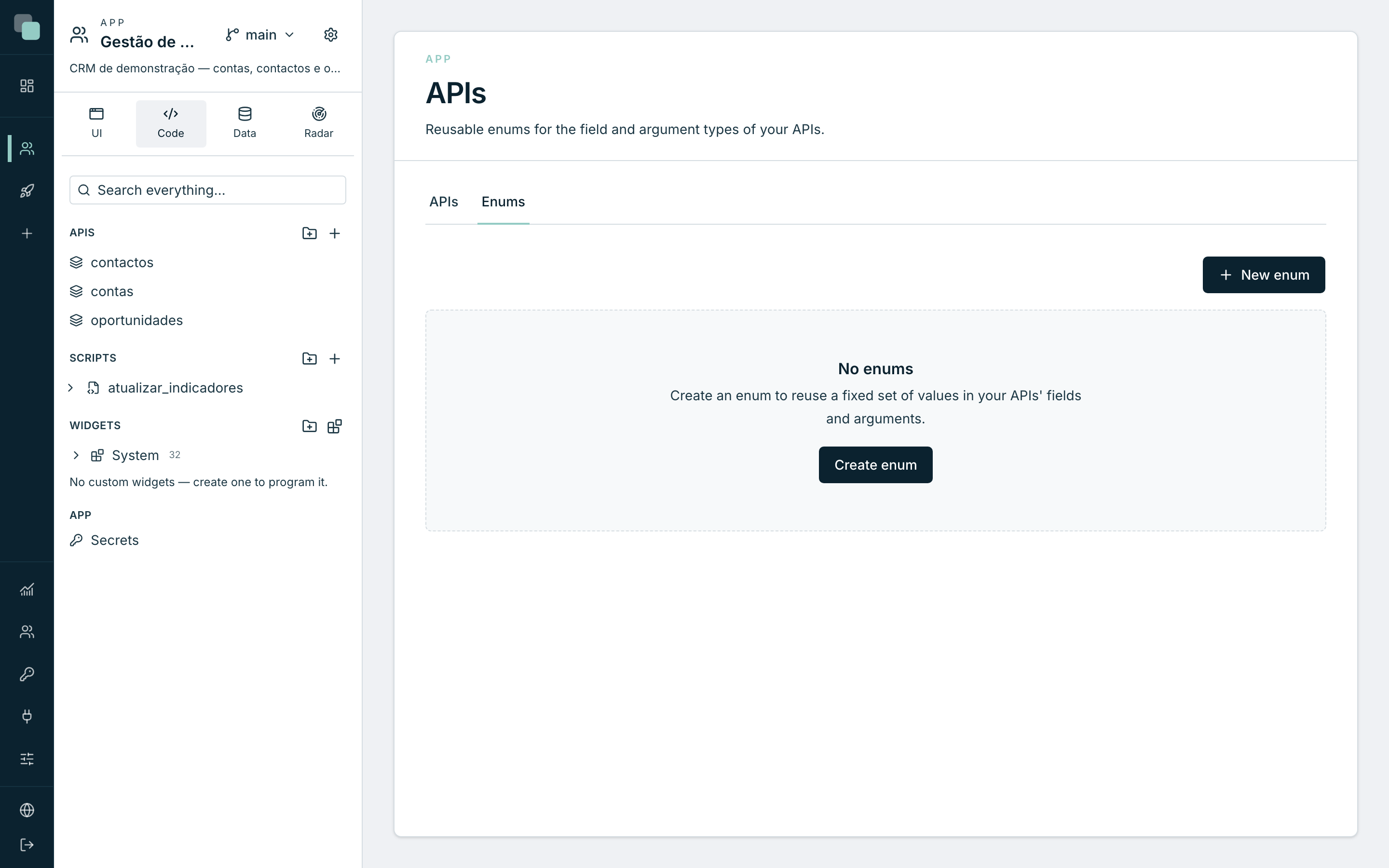

An enum exposes a fixed set of values in the GraphQL schema — the state of an account, the stage of an opportunity. They are managed on the APIs page, Enums tab:

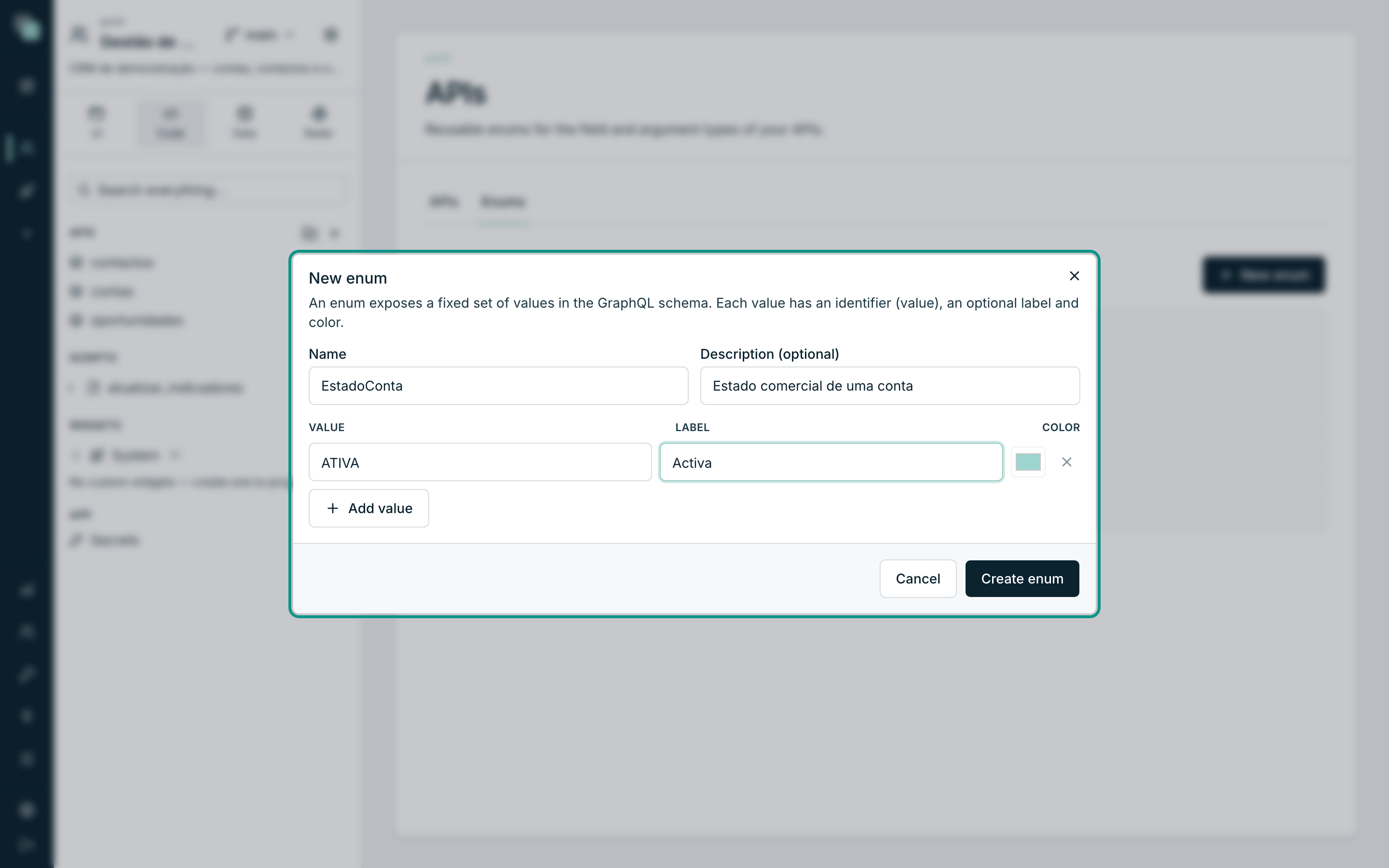

1. Click New enum.
2. Give it a name (e.g. EstadoConta) and, if it helps, a description.
3. Add values with Add value — each value has an identifier (value), an optional label and color. The color and the label are used by the screens; the value is what travels on the API.
4. Save.

An enum is used in two places: as the type of a model field (the field starts accepting only those values, and in filters it behaves like text) and as the type of an API argument. In the schema, clients see the enum with its values — the test environment's autocomplete suggests them.

#Exploring the schema in GraphiQL

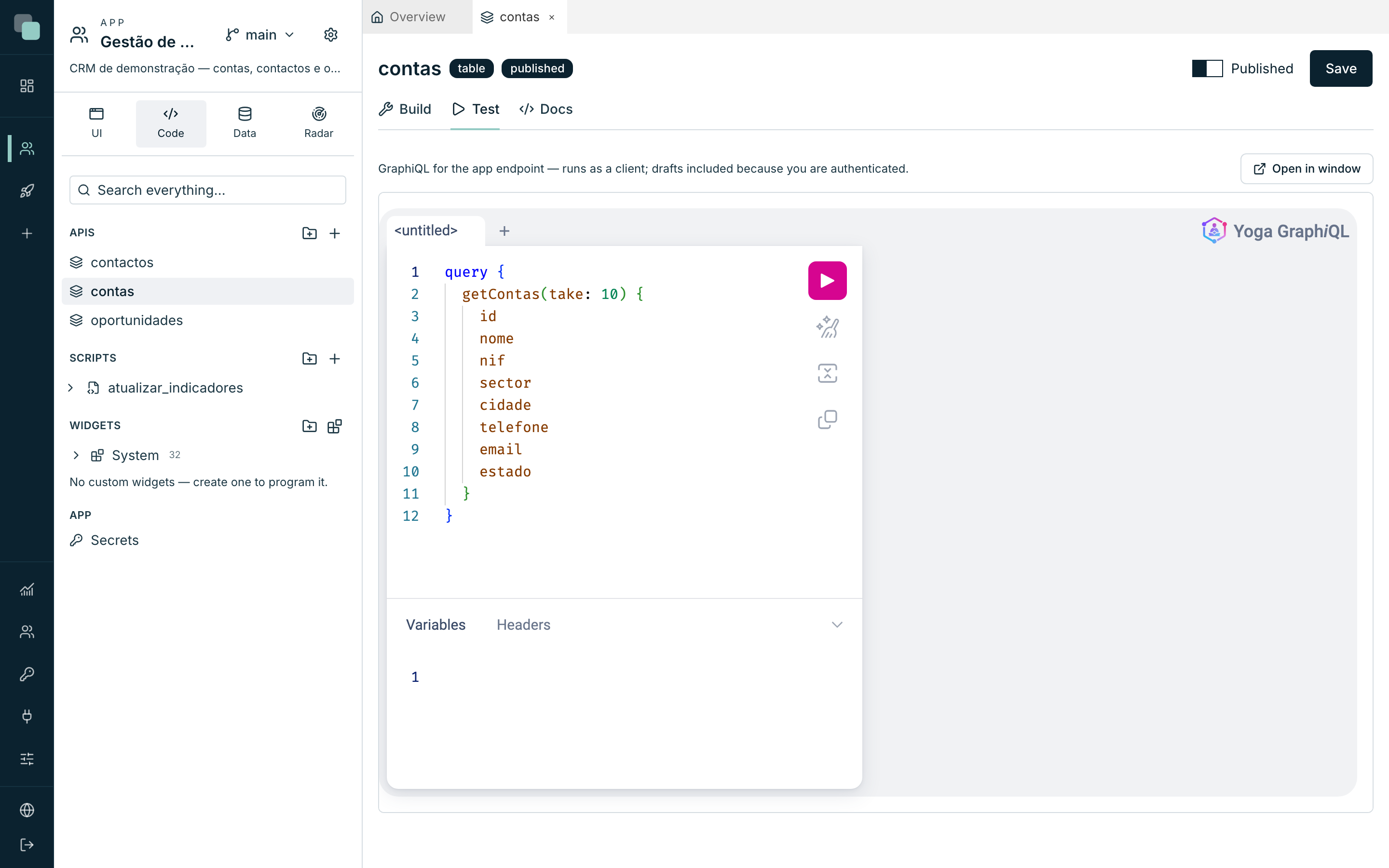

The Test tab of any API includes GraphiQL — the interactive environment of the app's endpoint. You write the operation on the left, run it, and see the response on the right; the autocomplete knows the whole schema, Table operations included. The Open in window button gives you the same environment full screen.

As you are authenticated on the platform, GraphiQL runs as a client but also sees the drafts — each draft operation appears with the description "DRAFT" in the schema documentation. And it answers about your working version: what you are designing is what you are testing.

#Why doesn't…?

• Why don't I see the getContas operation from outside? Either the API is a draft (publish it), or the Select action is not active, or your key does not have that endpoint in its scope.
• Why doesn't a field appear in the response? It is not ticked in Included fields — clients can only select what the API includes.
• Why does addContas return a true instead of the row? It depends on the database behind the table. When you always need the row, follow up with a getContas filtered by the key.
• Why did the schema change without me touching the APIs? The schema is generated from the model: importing new columns, changing an enum or disabling an entity is reflected in the API on the next call.
