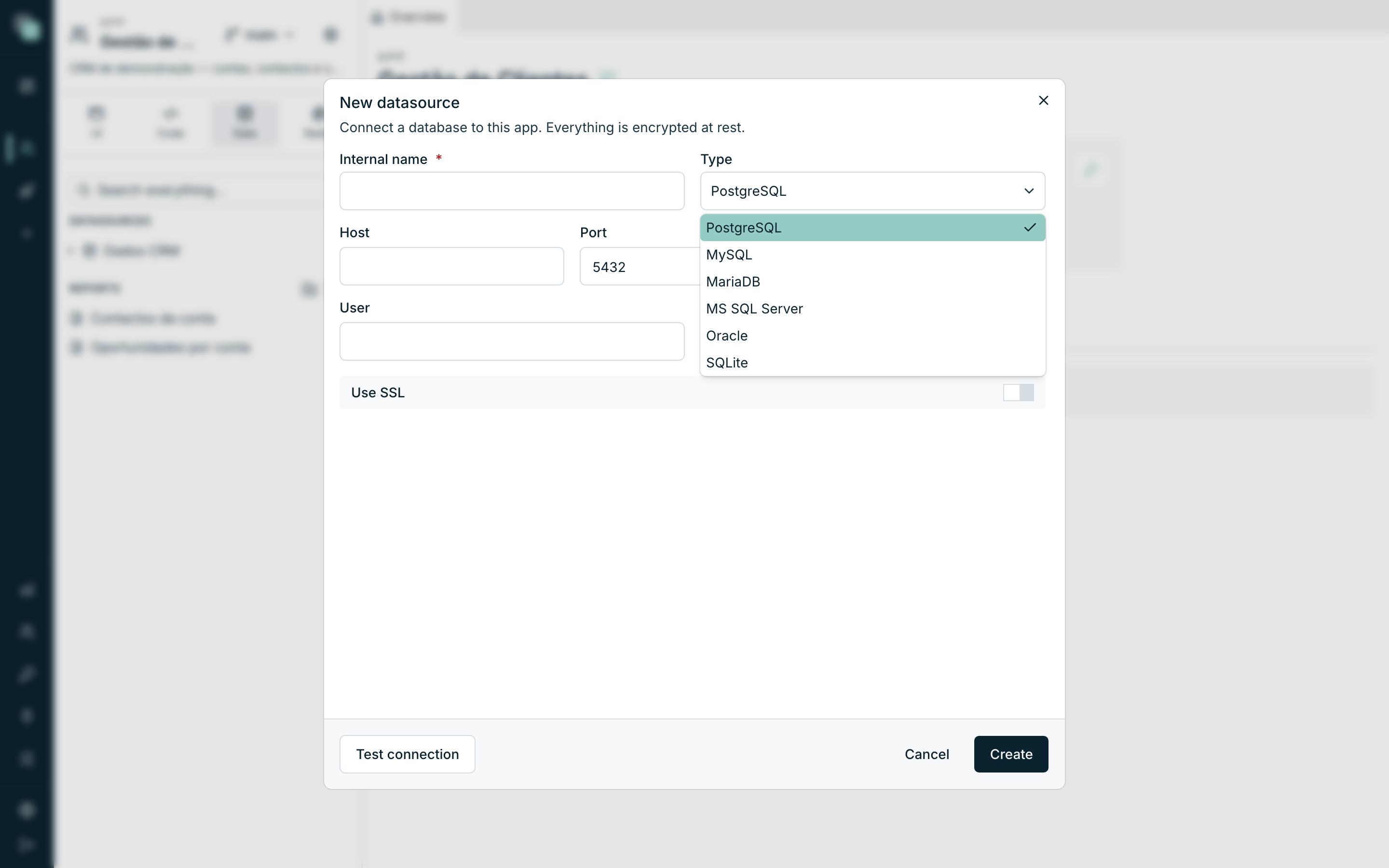

Supported types

When creating a datasource, the Type field decides everything else: the connection fields the form shows, the parameter markers the SQL uses, and what the platform lets you create in that database (views, procedures, triggers). This page walks through the six types, one by one.

#Quick view

Type	Connects to	Default port	Particulars
PostgreSQL	PostgreSQL server	5432	Use SSL switch
MySQL	MySQL server	3306	Use SSL switch
MariaDB	MariaDB server	3306	Use SSL switch
MS SQL Server	Microsoft SQL Server server	1433	Encrypt, Trust server certificate, legacy TLS, Query timeout (s)
Oracle	Oracle database	— (goes in the connect string)	A single Connect string field
SQLite	Local, file-based database	— (there is no server)	No credentials; the database lives with the app

#PostgreSQL, MySQL and MariaDB

The three share the same form:

Field	What it is
Host	Server address (name or IP)
Port	Comes filled in with the engine's (5432 or 3306)
Database	The name of the database inside the server
User	The account the platform connects with
Password	That account's password — it is never shown again
Use SSL	Turns on the connection's encryption, if the server demands or supports it

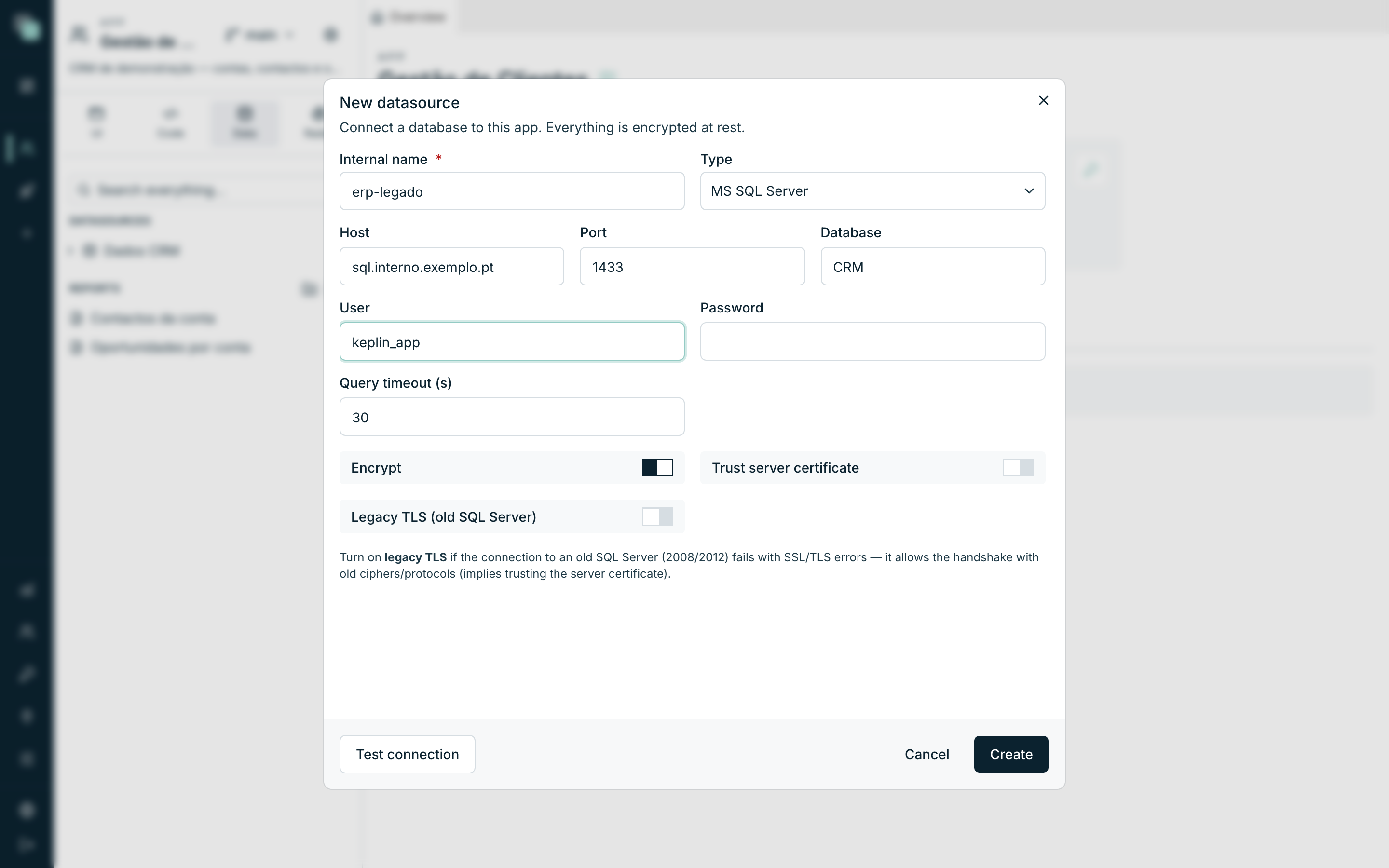

#MS SQL Server

Besides Host, Port (1433), Database, User and Password, SQL Server brings four options of its own:

Option	What it is for
Query timeout (s)	Maximum time of each query, in seconds (comes at 30). Raise it if you have long stored procedures — below that, they die halfway with a timeout error.
Encrypt	Encrypts the connection (comes on).
Trust server certificate	Accepts the server's certificate without validating it — typical on internal servers with a self-issued certificate.
Legacy TLS (old SQL Server)	See below.

The form itself explains when to turn the last one on: "Turn on legacy TLS if the connection to an old SQL Server (2008/2012) fails with SSL/TLS errors — it allows the handshake with old ciphers/protocols (implies trusting the server certificate)."

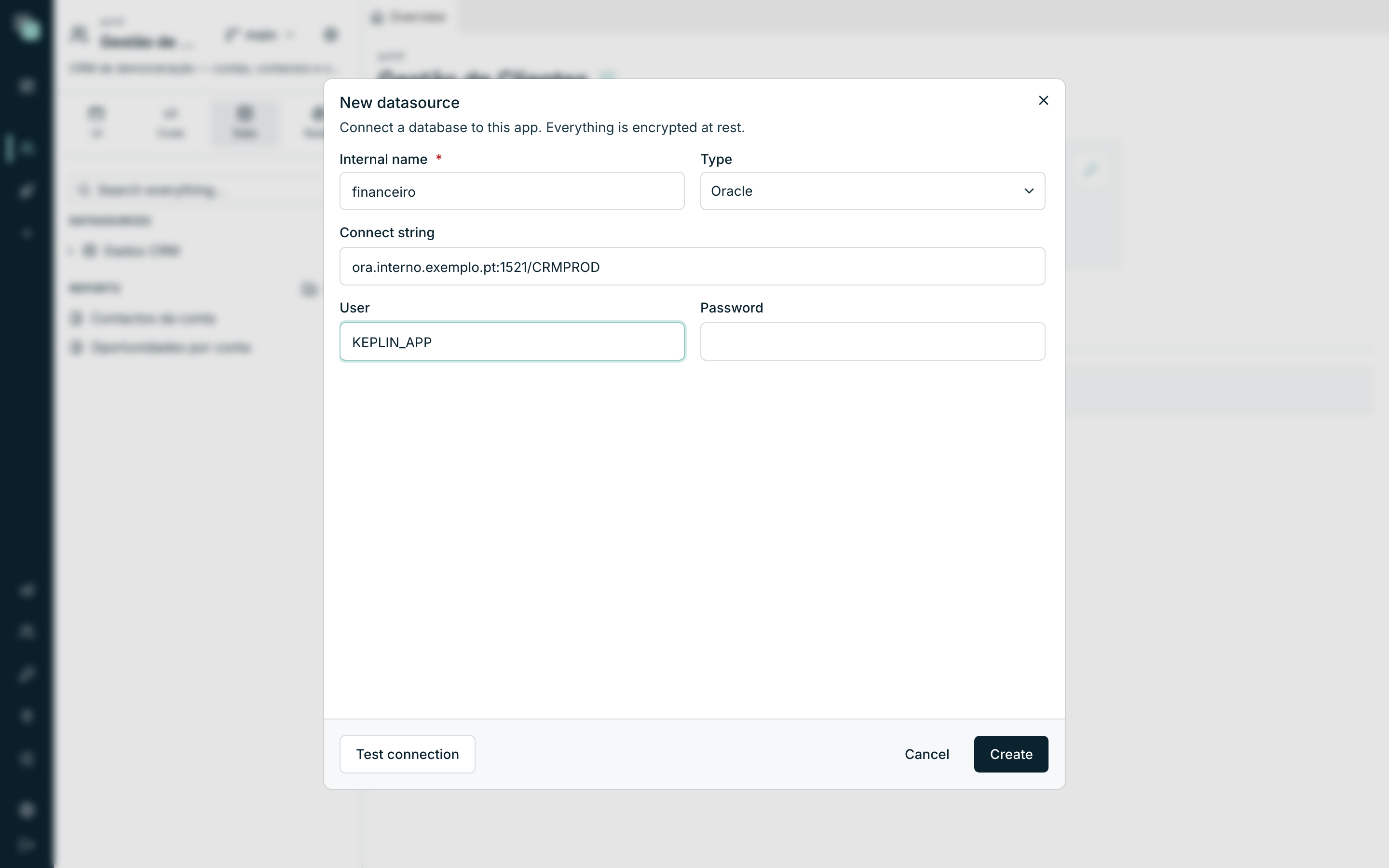

#Oracle

Oracle does without a separate host and port — the address all goes in one field:

Field	What it is
Connect string	In the format host:port/service_name — e.g. ora.interno.exemplo.pt:1521/CRMPROD
User	The Oracle schema/account the platform connects with
Password	That account's password

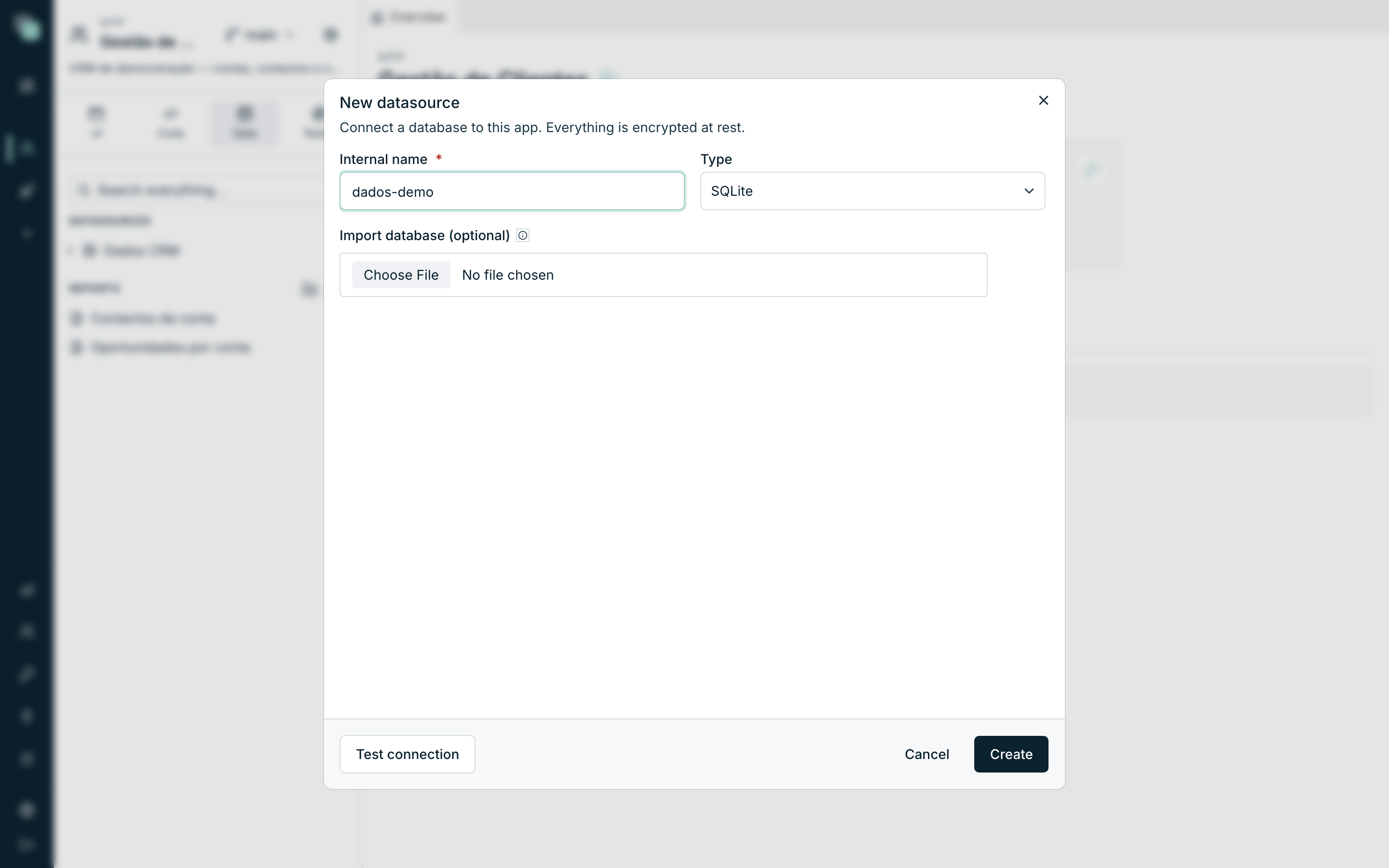

#SQLite — the database that lives with the app

SQLite is the type for data that belongs to the app: prototypes, demos, a small database that does not justify a server. There is no Host, Port, User or Password — there is a file, and it is the platform that keeps it:

1. Choose SQLite in the Type field.
2. Optionally, use Import database (optional) to send a .db, .sqlite or .sqlite3 file you already have.
3. Click Create. As the field's help says: "With no file, an empty database is created. The file is stored with the app — no paths to enter."

Three behaviours to know:

• Creating has no Test connection — the file does not exist yet, there is nothing to test. The button appears after saving, on editing.
• Editing never swaps the file — the file is the datasource; editing the connection creates no new database and deletes no data.
• Deleting the datasource says goodbye to the data — unlike the external types, here the database lives with the app.

#What each engine knows how to do

The platform only offers you what the engine supports — the options that do not exist on an engine do not appear in its menu. The map:

Capability	PostgreSQL	MySQL	MariaDB	MS SQL Server	Oracle	SQLite
Views	Yes	Yes	Yes	Yes	Yes	Yes
Functions / procedures	Yes	Yes	Yes	Yes	Yes	No
Triggers — timings	BEFORE, AFTER, INSTEAD OF	BEFORE, AFTER	BEFORE, AFTER	AFTER, INSTEAD OF	BEFORE, AFTER, INSTEAD OF	BEFORE, AFTER, INSTEAD OF
Trigger with several events at once	Yes	No (one per event)	No (one per event)	Yes	Yes	No
Trigger drawn on the visual canvas	Yes	Yes	Yes	Yes	Yes	No (SQL only)
Changing an existing column's type/nullability	Yes	Yes	Yes	Yes	Yes	No
Schema (optional) field on objects	Yes	—	—	Yes	Yes	—

#Creating and changing objects (DDL)

You do not need another tool to work on the database's structure: the ⋯ menu of each datasource in the Data panel creates objects, and the tree edits the existing ones. In every case the platform generates the SQL for the datasource's engine and runs it for real on the database.

Action	What it does

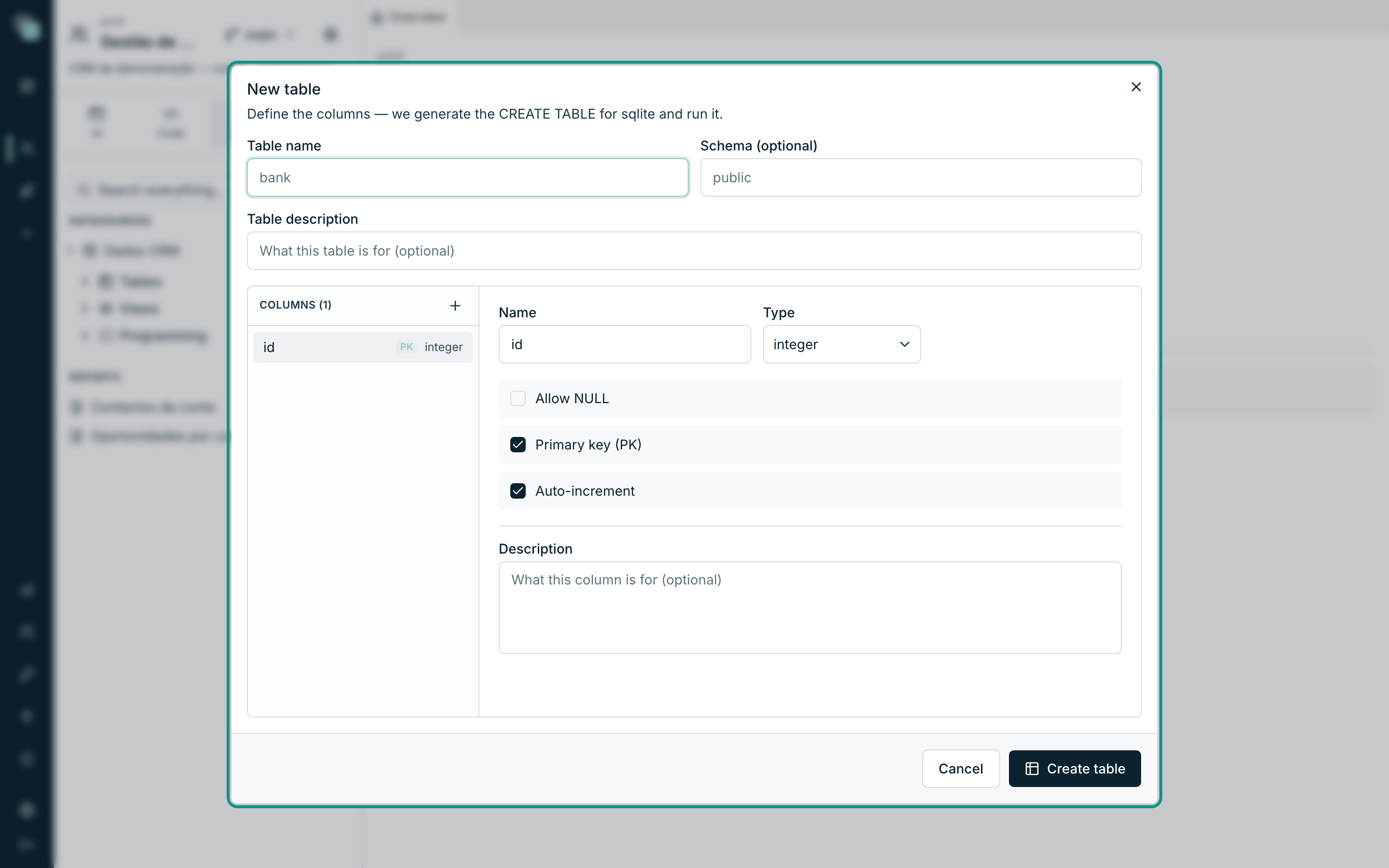

New table	"Define the columns — we generate the CREATE TABLE for the engine and run it." Columns with type, Allow NULL, Primary key (PK), Auto-increment, and a friendly name for the apps.
Edit structure (on a table)	"Change columns and indexes — generates and runs the corresponding ALTER / CREATE INDEX." Also creates and deletes indexes.
New view	You write the view's SQL and it runs.
New function / procedure	You write the SQL and it runs (on the engines that support them).
New trigger	Initial data in the modal; the flow is built next on the visual canvas.
Refresh objects	Rereads the database's structure — use it after changes made outside the platform.

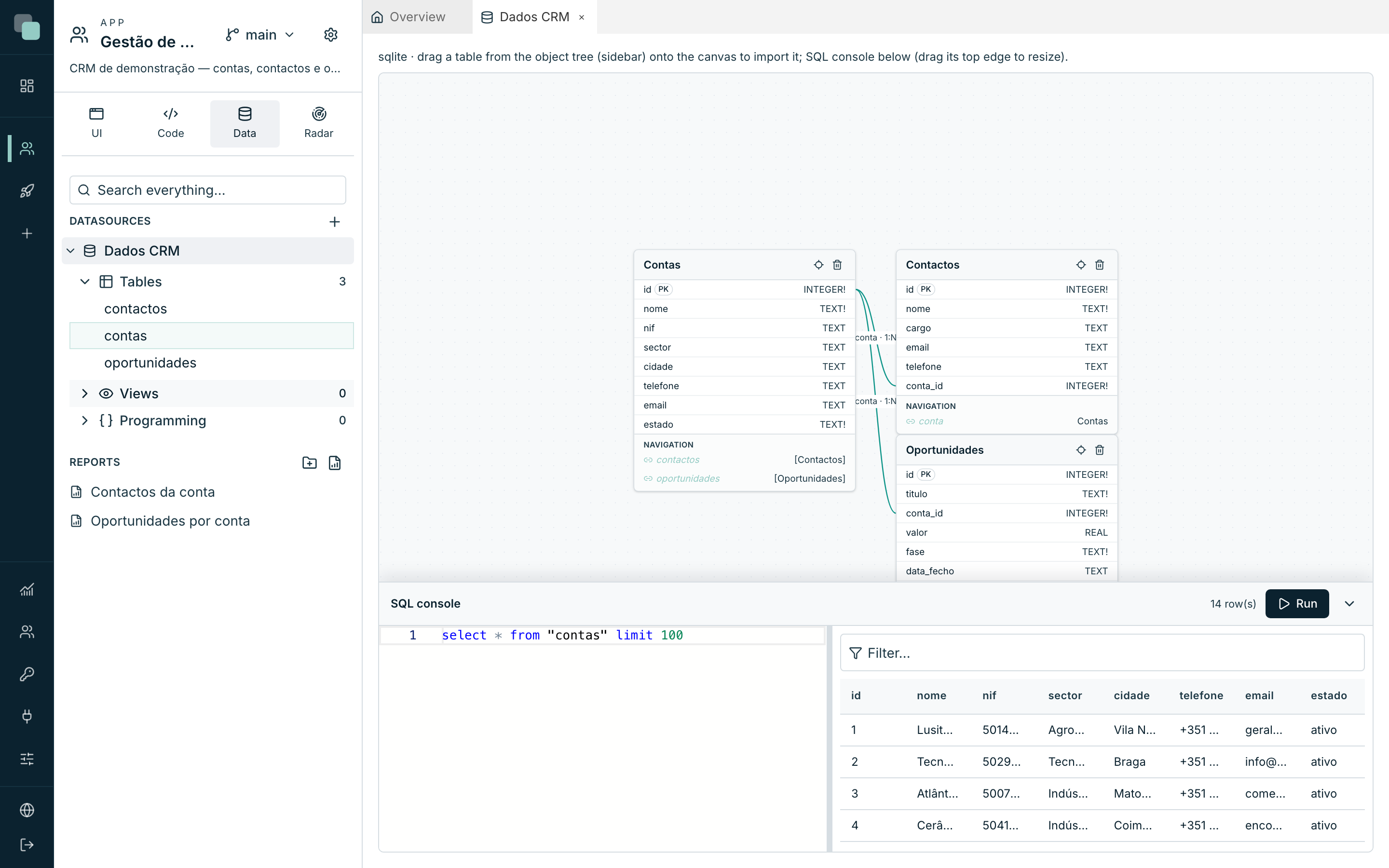

#The SQL console

At the bottom of each datasource's Model screen lives the SQL console: write on the left, click Run, and the results appear as a table (up to 500 rows), with per-column filters. The editor autocompletes with the datasource's tables and columns, and the View data of any table in the tree opens the console with a select already made.

The console is for administrators, and the write operations are recorded in the audit trail — the details are on the Testing the connection and security page.

#Parameter markers per engine

When you write SQL in scripts, the values go in a separate list — never glued into the sentence — and each engine has its own marker syntax:

Engine	Markers	Example
PostgreSQL	$1, $2, …	select * from contas where cidade = $1
MySQL / MariaDB	?	select * from contas where cidade = ?
MS SQL Server	@p1, @p2, …	select * from contas where cidade = @p1
Oracle	:1, :2, …	select * from contas where cidade = :1
SQLite	?	select * from contas where cidade = ?
